| Dòng sản phẩm | SF4D |
| Loại và kiểu rèm quang | Type 4-Compact & Robust |
| Loại bảo vệ | Arm/Foot |
| Số tia | 48 beam channels |
| Khoảng cách giữa các tia | 40mm |
| Vật thể nhỏ nhất có thể phát hiện | Ø 45mm |
| Chiều cao bảo vệ | 1910mm |
| Đặc điểm nổi bật | Slim and robust construction resists twisting, warping and impact. Series connection of up to 5 units |
| Nguồn sáng | Infrared LED |
| Khẩu độ hữu dụng | ±2.5° or less |
| Ngõ ra điều khiển an toàn | NPN/PNP x 2 |
| Thời gian đáp ứng ngõ ra an toàn | OFF response: <10 ms (Not connected in series/parallel), <18 ms (Connected in series / parallel). ON response: <50 ms |
| Thông số điện áp | 24VDC, +20% / -30% Ripple P-P 10 % or less |
| Nhiệt độ | –10 to +55 °C |
| Cấp bảo vệ | IP67, (IP65 IEC), NEMA Type 13 |
| Cấu tạo | Enclosure: Aluminum, Detection surface: Polycarbonate resin and stainless steel, Upper/lower cap: nylon |
| Kiểu kết nối | QD or Cabled |
| Chi tiết kiểu kết nối | Select SF4D Bottom Cap Style |
| Khối lượng | 10.90 lbs per EA |

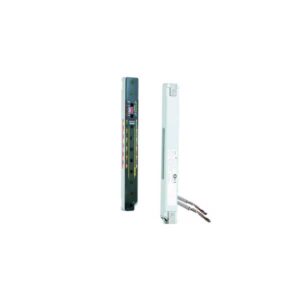

Cảm biến vùng Panasonic SF4D-A48
SF4D Robust Safety Light Curtain Series
Slim and robust construction resists twisting, warping and impact
Dead zoneless design enables easy calculation of safe distance.
Enviromental: IP67/IP65 (IEC) & NEMA Type 13 (NEMA 250)
Type 4 – 40mm beam spacing for Arm/Foot Protection Type
48 beam channels provide 1910mm protection height
15 meter sensing distance when set in Long Mode
Compatible with SF4D-TM1 Communication Module & Configurator Software
Key Options include blanking & muting
Mounting brkts and cables must be ordered separately
83.750.000 ₫
Thông tin bổ sung
| Thương hiệu | Panasonic |
|---|
