| Thông số | Giá trị |
|---|---|
| Model | KV-X500 |
| Power Supply Voltage | KV-5000/3000: 24 VDC (±10%)KV-8000/7000: 24 VDC (-15%/+20%) |
| Operating Temperature | KV-5000/3000: 0 to +50°C (No freezing)KV-8000/7000: 0 to +55°C (No freezing) |
| Storage Temperature | KV-5000/3000: -20 to +70°CKV-8000/7000: -25 to +75°C |
| Operating & Storage Humidity | Up to 95% RH (No condensation) |
| Operating Environment | No dust or corrosive gas |
| Operating Altitude | Up to 2000m |
| Noise Immunity | Complies with IEC 61000-4-2/3/4/6 |
| Withstand Voltage | 1500 VAC for 1 minute (Between power supply terminals and I/O, between external terminals and chassis) |
| Insulation Resistance | 50 MΩ or more (Measured with 500 VDC megohmmeter) |
| Vibration Resistance | Intermittent: 5-9 Hz: Amplitude 3.5 mm, 9-150 Hz: Acceleration 9.8 m/s²Continuous: 5-9 Hz: Amplitude 1.75 mm, 9-150 Hz: Acceleration 4.9 m/s² |
| Shock Resistance | Acceleration: 150 m/s², Shock duration: 11ms, Tested 2 times along X, Y, Z axes |
| Pollution Degree | 2 |
| Internal Power Consumption | Max. 600 mA |
| Weight | Approx. 410g |
| Processing Speed | I/O Contacts: Min. 0.50 nsDouble-precision floating point calculation: Min. 1.0 ns |
| Program Memory | Capacity: 128 MBMax. Number of Programs: 4000 |
| Max. Number of Materials | 100,000 |
| Programming Languages | Ladder, Structured Text, Mnemonic |
| CPU Memory Capacity | 128 MB |
| Variables | Total Capacity: 124 MB (Retained: 3.5 MB)Total Max. Count: 200,000 (Retained: 100,000) |
| Supported Data Types | BOOL, UINT, INT, UDINT, DINT, REAL, LREAL, TIME, STRING, ARRAY, Structure, Union, Function Block |
| Array | Max. Elements per Dimension: 1,040,187,392Max. Dimensions: 8Max. Capacity per Array: 65,011,712 words |
| Structure & Union | Max. Definitions: 8000Max. Elements per Definition: 2048Max. Nesting Depth: 8 |
PLC Keyence KV-X500
SKU: KV-X500
Hãng sản xuất: Keyence
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Báo giá
Thông tin bổ sung
| Thương hiệu | Keyence |
|---|
Khu vực Miền Nam
Call: 03826 777 45 / Chat Zalo
Khu vực Miền Bắc
Call: 0383 167 778 / Chat Zalo
Khu vực Miền Trung
Call: 0388 895 669 / Chat Zalo
PLC Keyence
-
Module Keyence KV-E8R (8 ngõ ra relay)
1.600.000 ₫ -
Module Keyence KL-32CX
-
Module Keyence KV-E16R (16 ngõ ra relay)
1.900.000 ₫ -
PLC Keyence KV-16AR (10 in/ 6 out relay)
3.500.000 ₫ -
PLC Keyence KV-N14ATP (8 in/ 6 out transistor)
4.200.000 ₫ -
PLC Keyence KV-7500
9.700.000 ₫ -
PLC Keyence KV-N24DTP (14 in/ 10 out transistor)
4.500.000 ₫ -

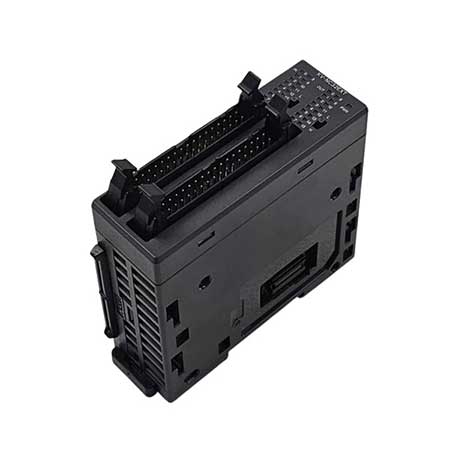

Module Keyence KV-NC32EXT (32 in/ 32 out transistor)
