| Thông số | Giá trị |
|---|---|
| Model | KV-N40DTP |
| Power voltage | 24 VDC (+10%/-15%) |
| Operating ambient temperature | 0 to 55°C (32 to 131°F) (no freezing) |
| Operating ambient humidity | 5 to 95% RH (no condensation) |
| Operating environment | As little dust and corrosive gas as possible |
| Noise immunity | 1500 V peak-to-peak or more, pulse duration 1 μs, 50 ns (IEC61000-4-2/3/4/6) |
| Withstand voltage | 1500 VAC for 1 minute, between power supply terminal and I/O terminals and between all external terminals and case |
| Insulation resistance | 50 MΩ or more (500 VDC megger used to perform measurements between power terminal and input terminals) |
| Storage temperature | −25 to +75°C (−13 to +167°F) |
| Vibration resistance (Intermittent vibration: 5 to 9 Hz) | Amplitude: 3.5 mm (0.14″) |
| Vibration resistance (Intermittent vibration: 9 to 150 Hz) | Acceleration: 9.8 m/s² (32.2’/s²) |
| Vibration resistance (Continuous vibration: 5 to 9 Hz) | Amplitude: 1.75 mm (0.07″) |
| Vibration resistance (Continuous vibration: 9 to 150 Hz) | Acceleration: 4.9 m/s² (16.1’/s²) |
| Shock resistance | Acceleration: 150 m/s² (492.1’/s²), application time: 11 ms, three times in each of the X, Y, and Z directions |
| Operating altitude | 2000 m (6561.7′) |
| Overvoltage category | AC: II, DC: I |
| Pollution degree | 2 |
| Program capacity | 16k steps |
| Maximum number of attachable I/O units | 8 |
| Maximum number of I/O points | 256 (excluding the base unit I/O) |
| Input relay/Output relay/Internal auxiliary relay | Total of 9600 points 1 bit (R000 to R59915) |
| Link relay | 8192 points 1 bit (B0 to B1FFF) |
| Timer | 512 points 32 bit (T0 to T511) |
| Data memory | 32768 points 16 bit (DM0 to DM32767) |
| Link register | 16384 points 16 bit (W0 to W3FFF) |
| Temporary memory | 512 points 16 bit (TM0 to TM511) |
| High-speed counter | 3 points (CTH0 to CTH2), 32-bit automatic reset counter |
| High-speed counter comparator | 6 points (CTC0 to CTC5), 32 bits, two points per high-speed counter |
| Positioning pulse output | 3 axes, Maximum output frequency: 100 kHz |
| Base unit I/O | Input: 24 points, output: 16 points, Input common: 1 point, Output common: 2 points |
| Power off hold function | Program memory: Flash ROM can be rewritten 10000 times |
| Self-diagnosis function | CPU error, RAM error, and other problems |
| Input specifications | Relay number: R000 to R007, R014 to R107 (18 points) |
| Input mode | 24 VDC input (open collector) |
| Maximum input voltage | 26.4 VDC |
| Rated input voltage | 24 VDC (General input: 5.3 mA) |
| Output specifications | Relay number: R506 to R515 (10 points), High-speed output: R500 to R505 (6 points) |
| Output mode | MOSFET (P-ch) output for the source output type |
| Maximum OFF voltage | 30 VDC |
| Built-in serial port | Interface: RS-232C |
| Transmission baud rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Transmission method | Full duplex |
| Transmission distance | 15 m (49.2′) |
| Weight | Approx. 530 g |
PLC Keyence KV-N40DTP (24 in/ 16 out transistor)
SKU: KV-N40DTP
Hãng sản xuất: Keyence
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng
5.500.000 ₫
Thông tin bổ sung
| Thương hiệu | Keyence |
|---|
Khu vực Miền Nam
Call: 03826 777 45 / Chat Zalo
Khu vực Miền Bắc
Call: 0383 167 778 / Chat Zalo
Khu vực Miền Trung
Call: 0388 895 669 / Chat Zalo
PLC Keyence
-
Module Keyence KL-N20V
-
Module Keyence KV-C32TAP (32 ngõ ra transistor)
2.900.000 ₫ -
Module Keyence KV-C64XC (64 ngõ vào)
3.100.000 ₫ -
Module Keyence KV-N8EX (8 ngõ vào)
3.500.000 ₫ -
Module Keyence KV-NC32EX (32 ngõ vào)
3.700.000 ₫ -
Module truyền thông Keyence KV-LM20
-

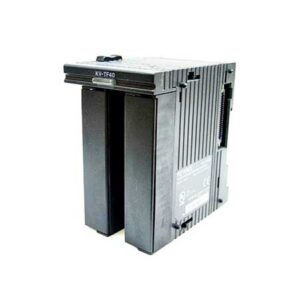

Module Keyence KV-E8X (8 ngõ vào)
