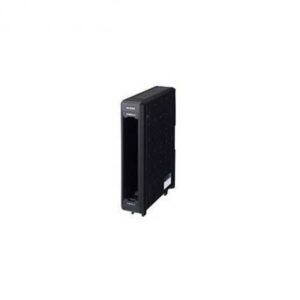

Module Keyence KV-N8ET (8 ngõ ra transistor)

Name: Module Keyence KV-N8ET (8 ngõ ra transistor)
Brand: Keyence
SKU: KV-N8ET
Availability: InStock

SKU: KV-N8ET
Hãng sản xuất: Keyence
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

3.700.000 ₫

SKU: KV-N8ET Danh mục: PLC Keyence Thương hiệu: Keyence

Thông số	Giá trị
Model	KV-N8ET
Type	Expansion output unit
Output Points	8 points
External Connection Method	MOSFET (with overcurrent protection function)12
External Connection Method	Terminal block
Rated Load	30 VDC, 0.5 A
Leakage Current (at OFF)	100 μA or less
Residual Voltage (at ON)	0.8 VDC or less (with 0.5 A output)0.6 VDC or less (with 0.3 A output)
ON Resistance	−
Common Method	8 points/1 common (4 terminals)*3
Response Time (OFF to ON)	100 μs or less (with a load of 1 mA or more)
Response Time (ON to OFF)	200 μs or less (with a load of 1 mA or more)
Relay Life	−
Relay Replacement	−
Internal Current Consumption	30 mA or less
Weight	Approx. 160 g
