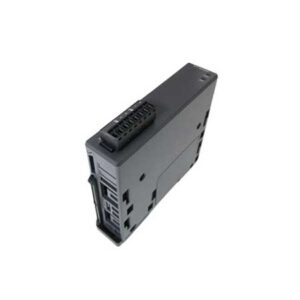

Module Keyence KV-DA40V

SKU: KV-DA40V
Hãng sản xuất: Keyence
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

SKU: KV-DA40V Danh mục: PLC Keyence Thương hiệu: Keyence

Thông số	Giá trị
Model	KV-DA40V
Type	Analog-Digital Conversion Module
Analog Input/Output Points	4 points
Analog Input/Output Range (Resolution)	Voltage: -10 to +10 V (0.5 mV 1/40,000), 0 to 10 V (0.5 mV 1/20,000), 0 to 5 V (0.25 mV 1/20,000), 1 to 5 V (0.25 mV 1/16,000); Current: 0 to 20 mA (1 µA 1/20,000), 4 to 20 mA (1 µA 1/16,000)
Input Impedance	–
Conversion Speed	25 µs/channel
Conversion Accuracy (25 °C ±5 °C)	Voltage: ±0.1 % of F.S., Current: ±0.2 % of F.S.
Conversion Accuracy (0 to 50 °C)	Voltage: ±0.3 % of F.S., Current: ±0.3 % of F.S.
Isolation Mode	Between the module and CPU: opto-coupler isolated, channels are not isolated
Minimum Load Impedance	Voltage: 1 kΩ
Maximum Load Impedance	Current: 600 Ω
Current Consumption	Up to 170 mA
Weight	Approx. 150 g
