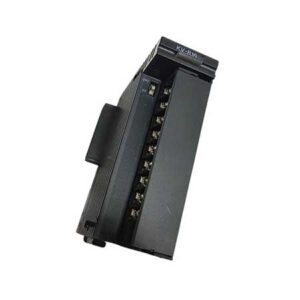

Module Keyence KV-B16XA (16 ngõ vào)

Name: Module Keyence KV-B16XA (16 ngõ vào)
Brand: Keyence
SKU: KV-B16XA
Availability: InStock

SKU: KV-B16XA
Hãng sản xuất: Keyence
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

2.500.000 ₫

SKU: KV-B16XA Danh mục: PLC Keyence Thương hiệu: Keyence

Thông số	Giá trị
Model	KV-B16XA
Type	Input unit
External Connection Mode	Terminal block
Number of Inputs	16 points
Input Mode	DC 24 V mode, DC 5 V mode
Max. Input Voltage	DC 26.4 V (±10 %)
Rated Input Voltage (DC 24 V mode)	DC 24 V, 5.3 mA
Rated Input Voltage (DC 5 V mode)	DC 5 V, 1 mA
Min. ON Voltage (DC 24 V mode)	19 VDC
Min. ON Voltage (DC 5 V mode)	3.5 V
Max. OFF Current (DC 24 V mode)	1.5 mA
Max. OFF Voltage (DC 24 V mode)	1.5 V
Common Point Mode	16 points/1 common (2 terminals)*1
Input Time Constant (25µs Setting)	OFF to ON: Typ 25 µs/Max 65 µsON to OFF: Typ 75 µs/Max 120 µs
Input Time Constant (1 ms Setting)	OFF to ON: Typ 1 ms/Max 1.2 msON to OFF: Typ 1 ms/Max 1.2 ms
Input Time Constant (10 ms Setting)	OFF to ON: Typ 10 ms/Max 12 msON to OFF: Typ 10 ms/Max 12 ms
Input Impedance	4.3 kΩ
Internal Current Consumption	15 mA or less
Weight	Approx. 120 g
