| Thông số | Giá trị |
|---|---|
| Model | KL-16CT |
| General specifications – Disconnection error output load | 30 VDC, 0.1 A or less, residual voltage: 1 V or less |
| Vibration resistance | 10 to 55 Hz, 1.5 mm or less double amplitude for 2 hours in each of the X, Y, and Z directions; 1 G when attached to a DIN rail |
| Insulation system | – |
| Power voltage | 10.8 to 26.4 VDC (for the connector type I/O unit, this is supplied by the dedicated cable) |
| Operating ambient temperature | 0 to 60°C |
| Operating ambient humidity | 35 to 85%RH (no condensation) |
| Operating environment | No corrosive gas present |
| Noise immunity | Power supply common: 1,500 V, power supply normal: 500 V, pulse width: 1 ms, 50 ns (by way of a noise simulator) |
| Withstand voltage | 500 VAC for 1 minute (between the power supply terminal and the I/O terminals; excluding the ERR output terminal) |
| Insulation resistance | – |
| Performance specifications – Input maximum rating | – |
| Input voltage | – |
| Minimum ON voltage | – |
| Maximum OFF current | – |
| Maximum OFF voltage | – |
| Input impedance | – |
| Number of inputs/outputs | 16-connector transistor output |
| Internal current consumption | 70mA or less |
| Weight | approx 70g |
| Output specifications – Output | NPN open collector |
| Residual voltage (when output is ON) | 0.8V or less |
| Leakage current (when output is OFF) | 100 µA or less |
| Transistor output – Rated load voltage | 30 V DC and 5 to 26.4 V DC (power source supplied across VC and C) |
| Rated output current | 0.5 A/output (when 24 V or more is applied across VC and C), 0.15 A/output (when 12 V or more is applied across VC and C), 0.05 A/output (when 5 V or more is applied across VC and C) |
| Common ground | Written on the terminal wiring diagram of each unit |
| ON delay time | 25 µs or less |
| OFF delay time | 200 µs or less |
| Insulation resistance | 20 MΩ or more (tested with a 500 VDC megger, between the power supply terminal and the I/O terminals; excluding the ERR output terminal) |
| Insulation system | Photocoupler isolation |
| Relay output – Rated voltage | – |
| Rated output current | – |
| Common ground | – |
| ON resistance | – |
| ON delay time | – |
| OFF delay time | – |
| Insulation resistance | – |
| Insulation system | – |
Module Keyence KL-16CT
SKU: KL-16CT
Hãng sản xuất: Keyence
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Báo giá
Thông tin bổ sung
| Thương hiệu | Keyence |
|---|
Khu vực Miền Nam
Call: 03826 777 45 / Chat Zalo
Khu vực Miền Bắc
Call: 0383 167 778 / Chat Zalo
Khu vực Miền Trung
Call: 0388 895 669 / Chat Zalo
PLC Keyence
-
PLC Keyence KV-40DT (24 in/ 16 out transistor)
7.500.000 ₫ -
Module Keyence KV-E16X (16 ngõ vào)
1.900.000 ₫ -
Module Keyence KV-NC16ETE (16 ngõ ra transistor)
4.100.000 ₫ -
Module Ethernet Keyence KV-LE21V
4.500.000 ₫ -

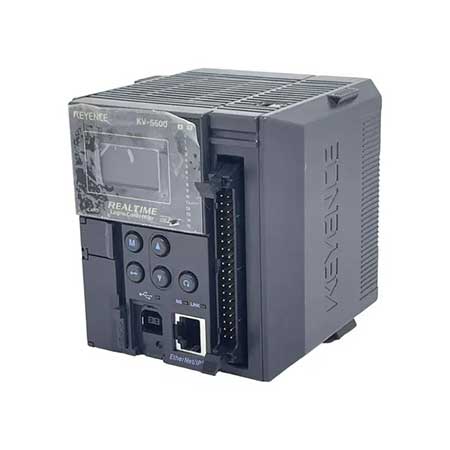

PLC Keyence KV-5500
