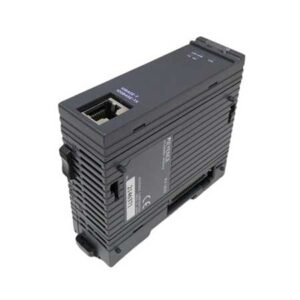

Module Keyence KL-16BT

Thông số	Giá trị
Model	KL-16BT
Disconnection Error Output Load	30 VDC, 0.1 A or less, residual voltage: 1 V or less
Vibration Resistance	10 to 55 Hz, 1.5 mm or less double amplitude for 2 hours in each direction
Power Voltage	10.8 to 26.4 VDC
Operating Temperature	0 to 60°C
Operating Humidity	35 to 85%RH (no condensation)
Noise Immunity	1,500 V for power supply common, 500 V for normal supply
Withstand Voltage	500 VAC for 1 minute
Current Consumption	90mA or less
Weight	Approx. 140g
Output Type	NPN open collector
Residual Voltage (when output is ON)	0.8V or less
Leakage Current (when output is OFF)	100 µA or less
Rated Load Voltage (transistor output)	30 V DC, 5 to 26.4 V DC
Rated Output Current	0.5 A/output (when 24 V or more applied), 0.15 A/output (when 12 V or more applied)
Common Ground	Written on terminal wiring diagram
ON Delay Time	25 µs or less
OFF Delay Time	200 µs or less
Insulation Resistance	20 MΩ or more (tested with a 500 VDC megger)
Insulation System	Photocoupler isolation

Thông tin bổ sung

Thương hiệu	Keyence
