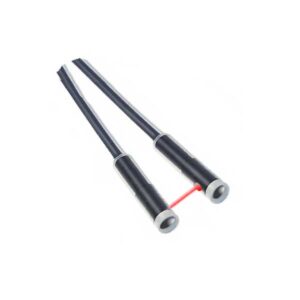

Cảm biến laser Panasonic LS-H102

Item Specifications

• Series
  LS-500
• Sensing Mode
  Thrubeam
• Sensing Mode Features
  Opaque & Translucent Target Detection
• Sensor Body Type
  Miniature
• Sensor Body Feature
  Side Screw Mounting
• Sensor Type
  Amplifier Separate Type
• Sensitivity Setting Type
  Push Button Teach
• Display Type
  Digital Display Remote Amp
• Sensor Features
  Amp separate thrubeam laser sensing head in a ultra small rectangular shape. 1 meter distance with Ø5mm laser beam spot. Use with LS-500 style digital amplifer.Digital Amplifier features red LED display and include external input, 4-20ma output, 2-digital ouputs and timing modes.
• Laser Beam Spot Size
  ø 5mm
• Laser Light Source Details
  Red Semiconductor laser – Class 1 FDA, 660nm
• Laser Output
  2 mW
• Supply Voltage Details
  12 to 24 VDC Separate Amp
• Setting Distance
  1 meter
• Control Output
  Analog, NPN or PNP
• Output Details
  4-20mA and 2 each NPN or PNP per Amplifier selected
• Output Operation Mode
  Light-On/Dark-On selectable
• Construction
  PBT enclosure, glass acrylic
• Temperature Rating
  -10º to +55º C
• Protection Rating
  IP67
• Connection Type
  Quick Disconnect
• Connection Detail
  Cable 2m with Fixed Connector
• Item Weight
  0.20 lbs per EA
