Dimensions:
Outer Dimensions: 395×257×31mm
Mounting Hole Dimensions: 383×246mm
Weight: 2450 grams
Casing Material: Galvanized aluminum alloy
Display:
Display Size: 15.6″ (16:9)
Resolution (Pixels): 1920×1080
Touch Panel: 4-wire high-precision touchpad
Display Colors: 16.7 million
Backlight Module: LED
Contrast Ratio: 700:1
Brightness (cd/m²): 300
Product Features/Certifications:
Memory: 4GB (eMMC) + 256MB DDR3
CPU: Cortex A7 1.2GHz
Voltage Endurance Test: 1000V AC, 1 minute
Electrostatic Test: 4 levels ±8kV
FCC Compatibility: Complies with FCC, Class A
CE Certification: Complies with EN55032 and EN55035 standards
Protection Level: IP65 (Front Panel)
Power/Interfaces:
Power Supply: (DC12~24V) ±15%
Power Consumption: 10W
Serial Interfaces: COM1 (RS232/422/485), COM2 (RS485)
USB Download Port: No
USB Port: Yes
SD Card Slot: No
Ethernet Port: Yes
CAN Interface: No
Network Connectivity:
WiFi: No
3G: No
Ethernet: Yes
4G: No
Environmental Conditions:
Operating Temperature: -20°C to 55°C (non-freezing)
Operating Humidity: 5% to 95% RH (non-condensing)
Vibration Resistance: 10~25Hz (XYZ direction, 2G for 30 minutes)
Programming Software: SKTOOL 7.0

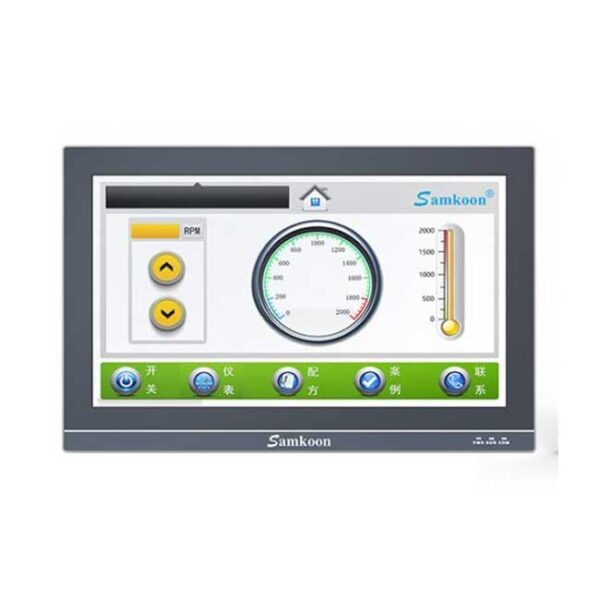

HMI Samkoon SK-156QS 15 inch
Màn hình 15.6 inch, 1 cổng RS232/422, 1 cổng RS485
SKU: SK-156QS
Hãng sản xuất: Samkoon
Chất lượng: Mới 100%
Bảo hành : Chính hãng
Chứng từ : CO/CQ, hóa đơn VAT
12.100.000 ₫
