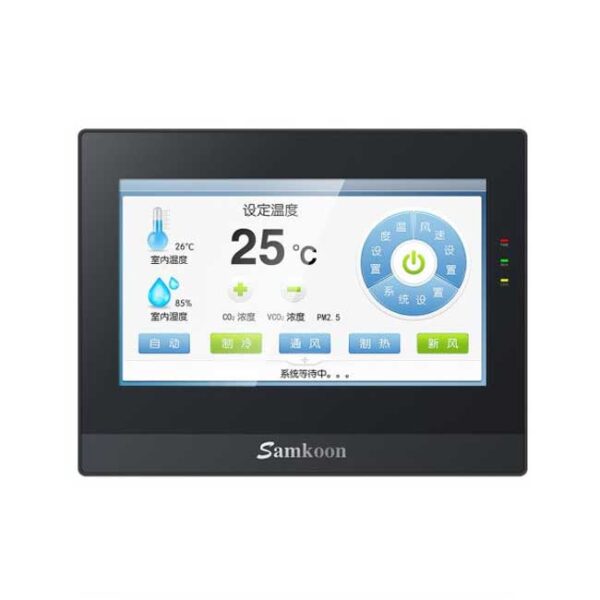

The SK-102QT-G is a high-performance industrial device that offers a wide range of features, robust build quality, and advanced security, making it ideal for various industrial applications.
Structural Specifications:
Dimensions: 273×211×40 (mm)
Mounting Hole Size: 259×201 (mm)
Weight: 1050g
Housing Material: Sturdy engineering plastic (ABS+PC)
Display:
Display Size: 10.2″ (16:9)
Resolution (Pixels): 1024 × 600
Touch Panel: High-precision 4-wire touchscreen
Display Colors: Impressive 16.7 million
Backlight Module: Utilizes energy-efficient LED technology
Contrast Ratio: 400:1
Brightness (cd/m²): 450
Product Features/Certifications:
Memory: 128MB FLASH + 128MB DDR3
CPU: Dual-core Cortex A7 processor with a clock speed of 1GHz
Voltage Resistance Test: 1000V AC, 1 minute
Electrostatic Test: ±6kV
FCC Compatibility: Complies with FCC, Class A
CE Certification: Complies with EN55032 and EN55035 standards
Protection Level: IP65 (front panel)
Power/Interfaces:
Power Supply: DC12-24V ±15%
Power Consumption: 7W
Serial Interfaces: COM1 (RS232), COM2 (RS485/422), COM3 (RS485)
USB Download Port: Yes
USB Port: Yes
SD Card: No
Ethernet Port: No
CAN: No
Network Connectivity:
WiFi: Yes (optional)
3G: No
Ethernet: No
4G: Yes (optional)
Environmental Conditions:
Operating Temperature: -20°C to 55°C (non-freezing)
Operating Humidity: 5-95% RH (non-condensing)
Vibration Resistance: Withstands 10-25Hz (XYZ direction, 2G for 30 minutes)
Programming Software:
Compatible with SKTOOL 7.0 for programming and customization.
