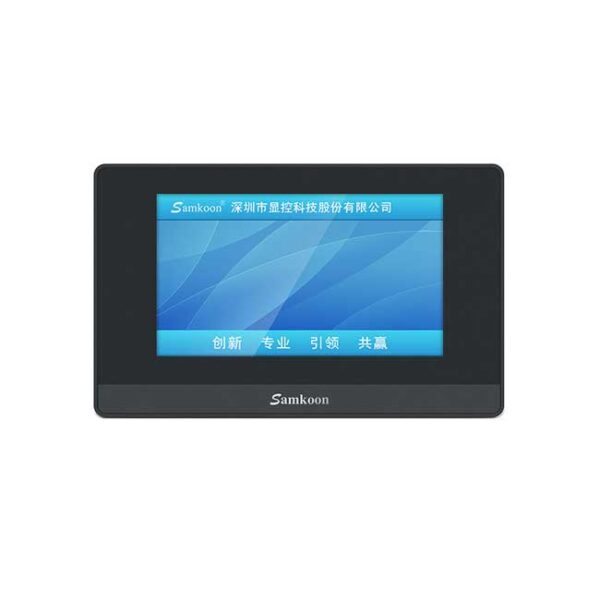

HMI Samkoon SK-043QT 4.3 inch

Dimensions:
Outer Dimensions: 139×86×31mm
Mounting Hole Dimensions: 132×80mm
Weight: 200g
Casing Material: ABS+PC engineering plastic
Display:
Display Size: 4.3″ (16:9)
Resolution (Pixels): 480 × 272
Touch Panel: 4-wire high-precision touchpad
Display Colors: 16.7 million
Backlight Module: LED
Contrast Ratio: 400:1
Brightness (cd/m²): 400
Product Features/Certifications:
Memory: 128MB FLASH + 128MB DDR3
CPU: Cortex A7 1GHz, Dual-core
Voltage Endurance Test: 1000V AC, 1 minute
Electrostatic Test: 4 levels ±8kV
FCC Compatibility: Complies with FCC, Class A
CE Certification: Complies with EN55032 and EN55035 standards
Protection Level: IP65 (Front Panel)
Power/Interfaces:
Power Supply: (DC12~24V) ±15%
Power Consumption: 3W
Serial Interfaces: COM1 (RS232), COM2 (RS485/422), COM2 (RS485)
USB Download Port: Yes
USB Port: Yes
SD Card Slot: No
Ethernet Port: No
CAN Interface: No
Network Connectivity:
WiFi: No
3G: No
Ethernet: No
4G: No
Environmental Conditions:
Operating Temperature: -20°C to 55°C (non-freezing)
Operating Humidity: 5% to 95% RH (non-condensing)
Vibration Resistance: 10~25Hz (XYZ direction, 2G for 30 minutes)
Programming Software: SKTOOL 7.0
