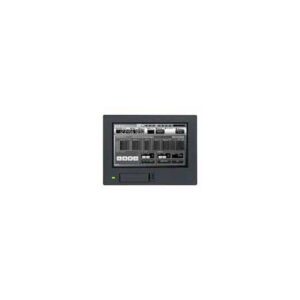

HMI Keyence VT5-W07

HMI Keyence VT5-W07

SKU: VT5-W07
Hãng sản xuất: Keyence
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

11.500.000 ₫

Báo giá
SKU: VT5-W07 Danh mục: Thương hiệu:
Thông sốGiá trị
ModelVT5-W07
General specifications – Current consumption900 mA max.
Generalspecifications – Power supply voltage24 VDC ±20%
Shock resistance – Intermittent vibration – Frequency:5 to 9 HzHalf amplitude: 3.5 mm*1
Frequency:9 to 150 HzAcceleration: 9.8 m/s2*1
Continuous vibration – Frequency:5 to 9 HzHalf amplitude: 1.75 mm*1
Frequency:9 to 150 HzAcceleration: 4.9 m/s2*1
General specifications – StructurePanel built-in type with IP65f-equivalent enclosure rating; dustproof and waterjet-proof only at front panel*2
Overvoltage categoryI
Pollution degree2
Noise resistance1500 Vp-p or more, pulse width: 1 µs, 50ns (by noise simulator)
Withstand voltage1500 VAC for 1 minute (between power terminal and housing)
Insulation resistance50 MΩ minimum (tested with 500 VDC megohmmeter between power terminal and housing)
Operating environmentNo dust or corrosive gas
Ambient operating temperature0 to +50°C*3
Ambient operating humidity20 to 85% RH (no condensation)*4
Ambient storage temperature-20 to +60°C (no freezing)
Ambient storage humidity20 to 85% RH (no condensation)
WeightApprox. 650 g
Performancespecifications – Display panel – Displayed componentsTFT LCD
Display colour16 million colours
Number of pixelsW 800 × H 480 pixels
Effective display areaW 153.6 × H 86.6 mm
Data backup – Screen dataFlash ROM
Record dataSRAM backup: Primary lithium battery (5 years above of service life at 25°C)
Performance specifications – Backlightlamp – SystemWhite LED (not replaceable)
Performancespecifications – Backlight – Service life (normal temperature and humidity)Approx. 50000 h
Performance specifications – Touchswitch – SystemAnalogue resistive film
Performancespecifications – Touch controlswitch – Operating force0.98 N or less
Performance specifications – Touchswitch – Life-span1 million times above
Screen data internal memory – Memory capacity128 MB
Calendar timerAccuracy: ±40 s/month (25°C), Backup: Primary lithium battery (5 years above of service life at 25°C)

Thông tin bổ sung

Thương hiệu

Keyence
