Cảm biến sợi quang Panasonic FT-KV40

Name: Cảm biến sợi quang Panasonic FT-KV40
Brand: Panasonic
SKU: FT-KV40
Availability: InStock

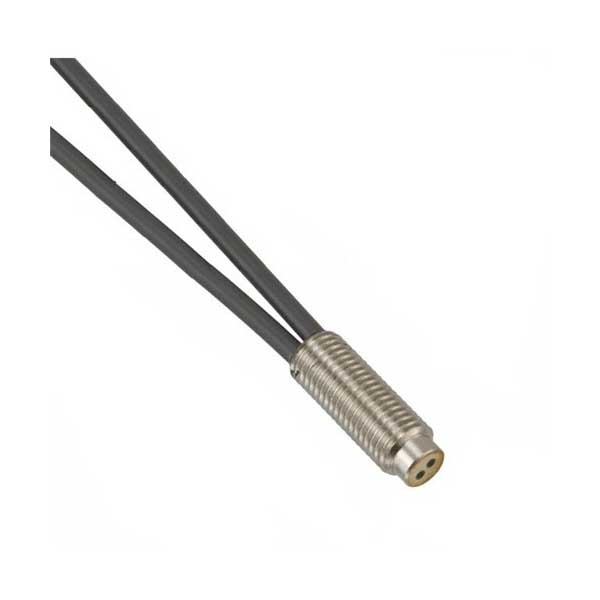

Panasonic (formerly Sunx) Ultra-Narrow Aperture Thrubeam Fiber Optic CablePerfect choice for reliable mapping of 300 mm wafersSide sensing type with 4 mm diameter sensing head – provides less than 2 degree aperture2 m long cuttable high-flex cable length with 2 mm bending radiusFiber cable cutters included

FT-KV40 Dimensional Drawing

4.962.000 ₫

Mã sản phẩm: FT-KV40 Danh mục: Cảm biến Panasonic Thương hiệu: Panasonic

Mô tả
Thông tin bổ sung

Item Specifications

Series
FT/FD/FR
Key Characteristics
Narrow Beam
Sensing Mode
Thrubeam
Key Attributes
Side-View
Lens Compatible
Not Compatible With Add-On Lens
Mounting Body Style
Ø 4.0mm
Mounting Dimension
Ø 4.0mm x 25mm
Fiber Cable Feature
Narrow Beam Type with Aperture angle of 2°. Side-view Sensing Direction for Wafer Mapping
Fiber Cable Bend Radius
R2 High-flex
Cuttable / Non-Cuttable
Cuttable
Fiber Length
2 meter
Fiber Core
Ø 0.5mm
Temperature Rating
-40 to +60° C
Includes
FX-AT4 black attachment w/tips for Ø1.0mm fibers, cutter, and MS-FD-3 mtg brkt
