Cảm biến sợi quang Panasonic FT-140

Name: Cảm biến sợi quang Panasonic FT-140
Brand: Panasonic
SKU: FT-140
Availability: InStock

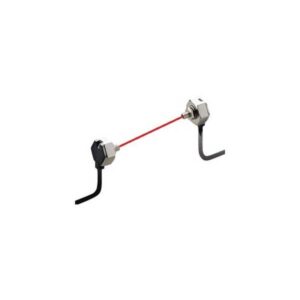

Panasonic (formerly Sunx) Thrubeam Fiber Optic Cable with Lenses14mm thread sensing tip features long distance lensesUp to 20 meter sensing distance 10 Meter Free Cut Cable with 4mm Bending Radius

FT-140 Dimensional Drawing

6.463.000 ₫

SKU: FT-140 Danh mục: Cảm biến Panasonic Thương hiệu: Panasonic

Mô tả
Thông tin bổ sung

Item Specifications

Series
FT/FD/FR
Key Characteristics
Thread Mount
Sensing Mode
Thrubeam
Key Attributes
Axial Sensing
Lens Compatible
Not Compatible With Add-On Lens
Mounting Body Style
M14
Mounting Dimension
M14 x 40mm
Fiber Cable Feature
M14 Size with Built-in Lens Provides Long Sensing Distance
Fiber Cable Bend Radius
R4 High-flex
Cuttable / Non-Cuttable
Cuttable
Fiber Length
10 meter
Fiber Core
Ø 1.0mm
Temperature Rating
-40 to +70° C
Includes
FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
