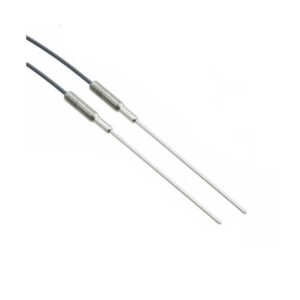

Cảm biến sợi quang Panasonic FD-A16

Item Specifications

• Series
  FT/FD/FR
• Key Characteristics
  Wide Beam Array
• Sensing Mode
  Diffuse
• Key Attributes
  Array Beam
• Lens Compatible
  Not Compatible With Add-On Lens
• Mounting Body Style
  Square/Rectangular
• Mounting Dimension
  7mm x 15mm x 30mm
• Fiber Cable Feature
  Features diffuse beam size of 2mm x 15mm at 15mm distance
• Fiber Cable Bend Radius
  R4 High-flex
• Cuttable / Non-Cuttable
  Cuttable
• Fiber Length
  2 meter
• Fiber Core
  Ø 0.25mm x 16 / Ø1.0mm x 1
• Temperature Rating
  -55 to +80° C
• Includes
  FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
