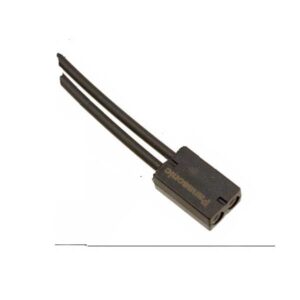

Cảm biến quang Panasonic EX-Z11FB

Name: Cảm biến quang Panasonic EX-Z11FB
Brand: Panasonic
SKU: EX-Z11FB
Availability: InStock

Ultra Miniature Design Front Sense Thrubeam Sensor Includes Transmitter and Receiver
50mm sensing distance
Capable of Detecting Opaque Objects as Small as 0.3mm in Diameter
Repeatability 0.02mm
12 to 24 vdc Power NPN Open Collector Dark-On Output
IP67 Rated 50G shock Rating 35 Grams Gross Weight
Includes M2 Mounting screws. Please Order Mounting Brackets Separately

2.339.000 ₫

Mã sản phẩm: EX-Z11FB Danh mục: Cảm biến Panasonic Thương hiệu: Panasonic

Mô tả
Thông tin bổ sung

Item Specifications

Series
EX-Z
Sensor Body Type
Minute Ultra-thin
Sensor Body Feature
Front sense 4.4mm thick, H14 x W8
Sensing Mode
Thrubeam
Sensing Mode Details
50mm distance – 0.02mm repeatability
Sensor Features
ø0.3mm minimum detectable object, 0.5ms response, M2 mtg screws included
Light Source
Red LED
Supply Voltage Details
12 to 24VDC
Sensing Range
50mm
Output
NPN
Output Details
1 each NPN
Timer
No
Output Mode
Dark-On
Construction
PBT housing, Polycarb lens, SUS mounting
Temperature
-10º to +55º C
IEC/Nema Rating Details
IP67
Connection Detail
Cable 2m
Item Weight
0.08 lbs per EA
