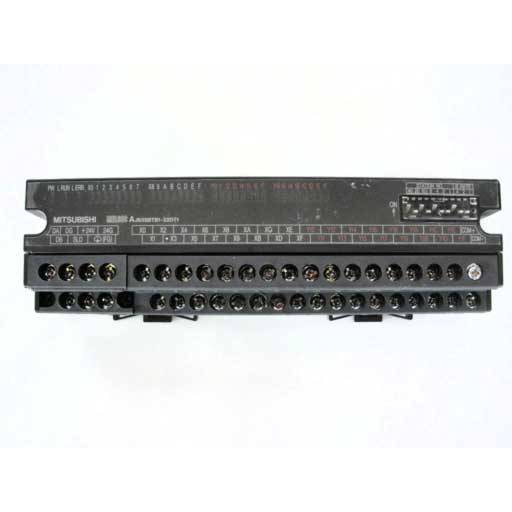

FA-MOD PLC: Digital I/O Module
| Series | MELSEC-L SERIES |
|---|---|
| Type | I/O COMBINED MODULE |
| Power Supply (V) | 12/24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 32 |
| Integrated Digital Inputs | 32 |
| Integrated Digital Outputs | 32 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 12/24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,16 |
Product Dimensions & Weight
| Width (mm) | 28,5 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 95 |
| Weight (kg) | 0,12 |
