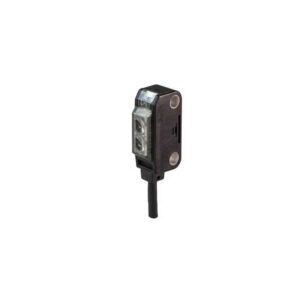

Cảm biến quang Panasonic CX-493

Name: Cảm biến quang Panasonic CX-493
Brand: Panasonic
SKU: CX-493
Availability: InStock

Panasonic (formerly Sunx) Retroreflective Photoelectric Sensor with Red LED source12 to 24 VDC supply with NPN output selectable LO and DO modeCompact housing features 5 meter distance and 2 meter connection cablesSingle turn adjustment potentiometer. 1ms response

2.045.000 ₫

SKU: CX-493 Danh mục: Cảm biến Panasonic Thương hiệu: Panasonic

Mô tả
Thông tin bổ sung

Item Specifications

Series
CX-400
Sensor Body Type
Compact Rectangular Plastic
Sensor Body Feature
H31 x W11 x D20, tough acrylic lens
Sensing Mode
Retro-reflective
Sensing Mode Details
Non-polarized type includes RF-230 reflector
Sensor Features
Potentiometer adjustment, ø50mm minimum sensing target – translucent or opaque. 05mm repeatability
Light Source
Red LED
Supply Voltage Details
12 to 24VDC
Sensing Range
100mm to 5 meter
Output
NPN
Output Details
1 each NPN
Timer
No
Output Mode
Light-On/Dark-On selectable
Construction
PBT enclosure, Acrylic lens
Temperature
-25º to +55º C
IEC/Nema Rating Details
IP67
Connection Detail
Cable 2m
Item Weight
0.20 lbs per EA
